Edic Atlas™ 6-Quart Backpack Vacuum With EDIC Ultrastat Disposable Filter Bag 600TV

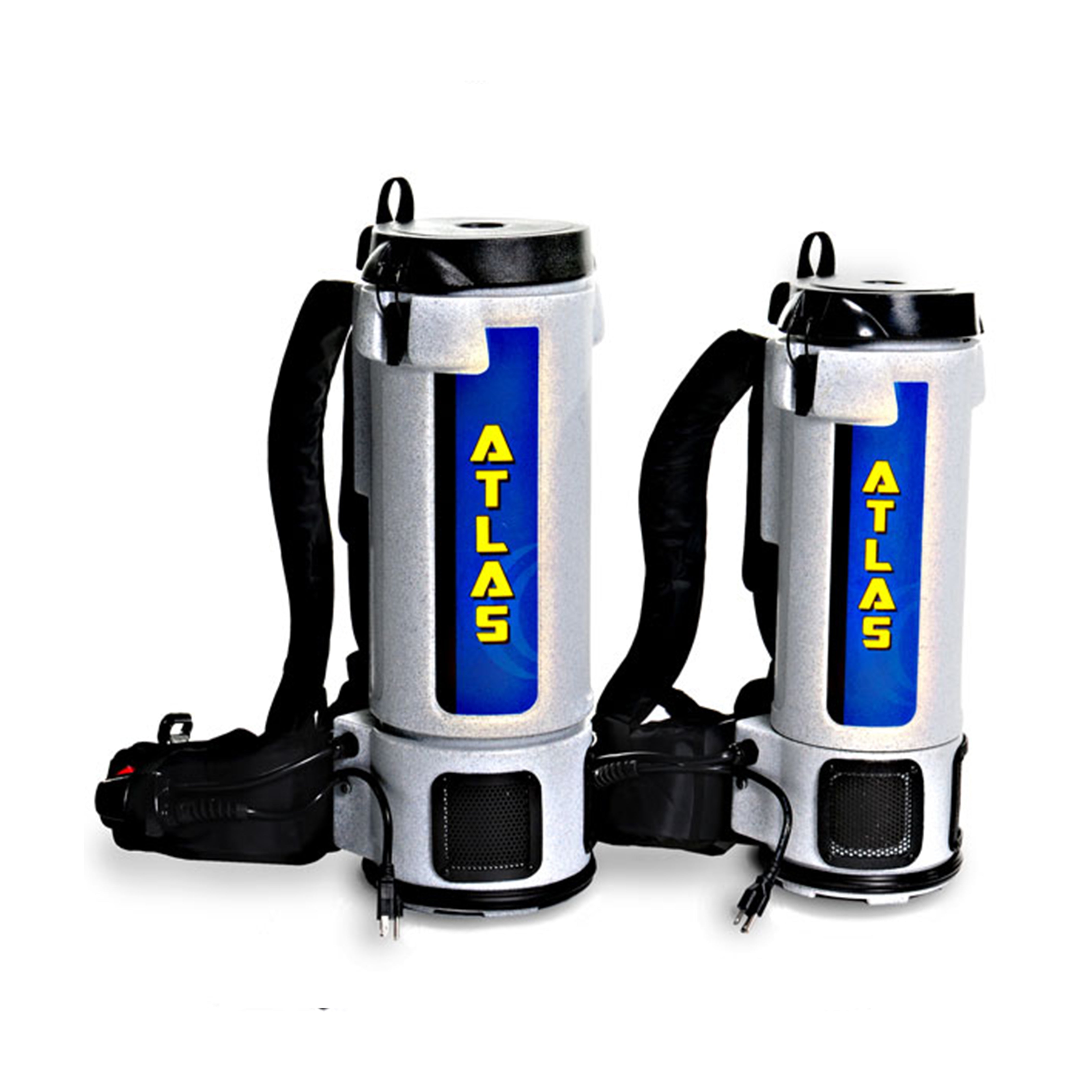

Atlas 6-Quart Backpack Vacuum with EDIC Ultrastat Filter – Powerful and Lightweight

Atlas, 6-Quart Backpack Vacuum with EDIC Ultrastat Disposable Filter Bag, Standard Tool Kit, 130 CFM, 65Db, 4-Stage Filtration, 9.8 LBS.

After years of careful planning, the Atlas™ Series are taking the backpack vacuum market by storm. Light enough for anyone to handle and the ergonomically-designed chest and hip straps result in a comfortable fit for any sized operator. Our unique airflow design makes these units quieter than most and the baffled exhaust goes out the back, away from the operator, for a higher level of comfort.

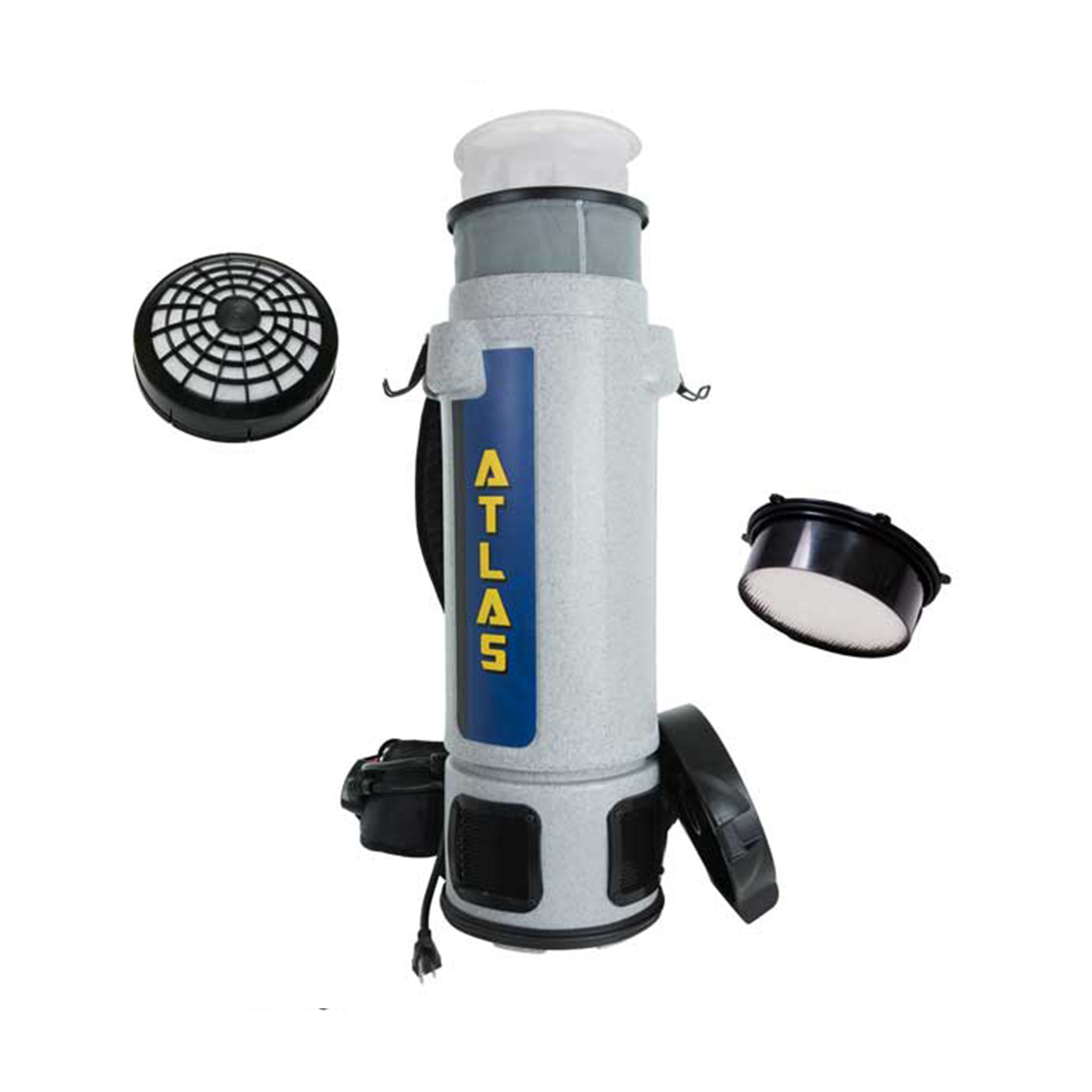

The Atlas™ Series come with our extraordinary Ultrastat™ 3-ply composite vacuum bag treated with an anti-microbial agent that provides exceptional airflow even when full, allowing for greater productivity. This exclusive filter is fitted with a durable plastic rim for an airtight seal around the top, and the seams are sonically welded (as opposed to glued). The result is higher dust retention, and a much longer filtration cycle.

Features:

• Longer exhaust chamber and diffused exhaust air for quieter operation
• EDIC Ultrastat filters provide greater dust retention and longer useful life than Micro filter bags because Ultrastat’s revolutionary synthetic material allows greater airflow even when the bag is full
• 3-Position hip adjustment for wider or narrower hips allows the unit to sit more comfortably on the hips
• Ergonomically designed harness with multi-adjustable settings for optimum comfort
• Light-weight- only 10 lbs.

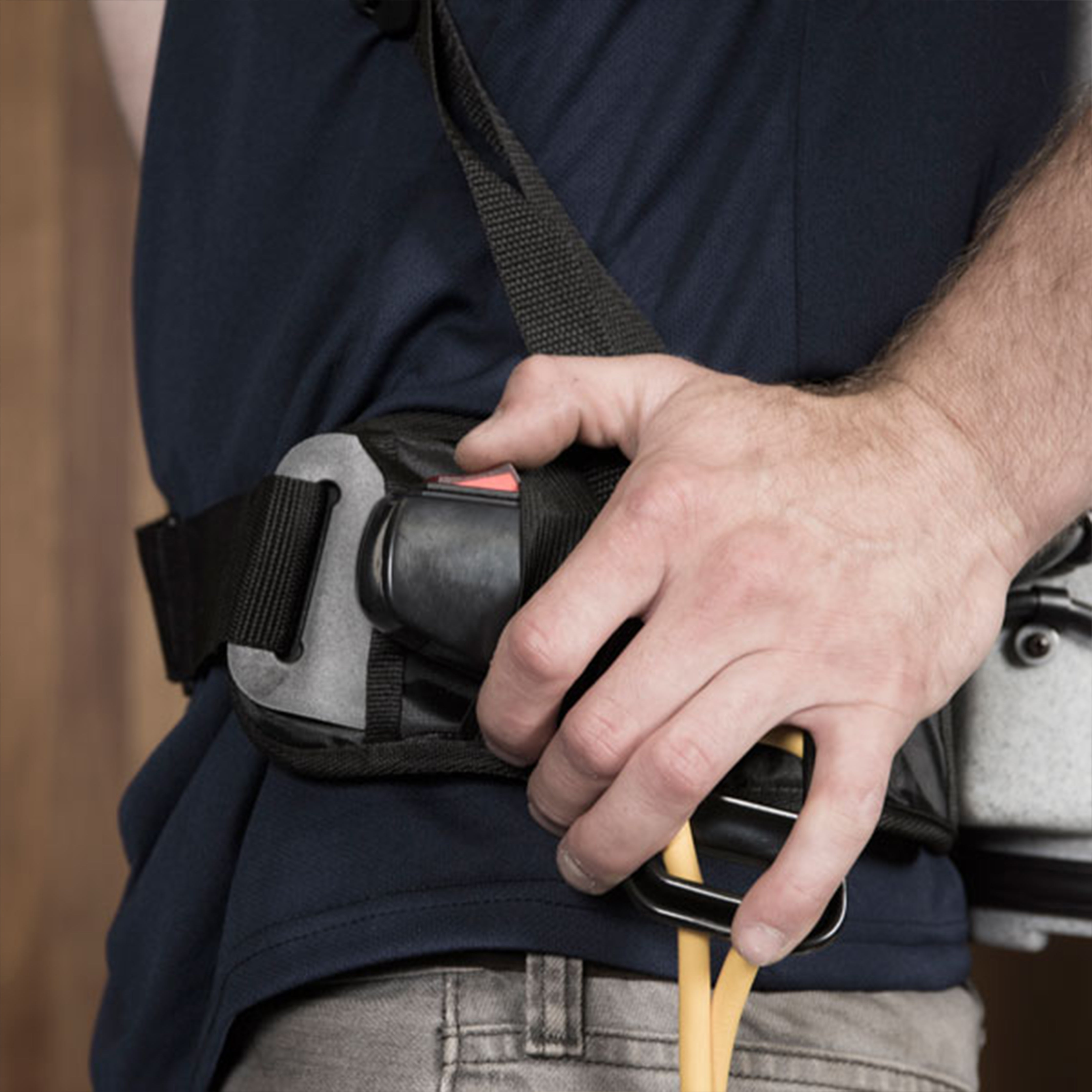

• Hip-mounted switch results in easy on/off
• Precision-molded cloth filter bag rim holds it’s shape to prevent collapsing inside the unit when the bag is full

#335AC) attachment for removing large amounts of liquid fast.

Features:

• 63 dB for whisper quiet operation
• Equipped with a dolly cart with large rear wheels for easy transport and greater stability
• Includes high quality “drop-in” style cloth filter bag for maximum air flow
• Paper filter bags available plus optional HEPA filters

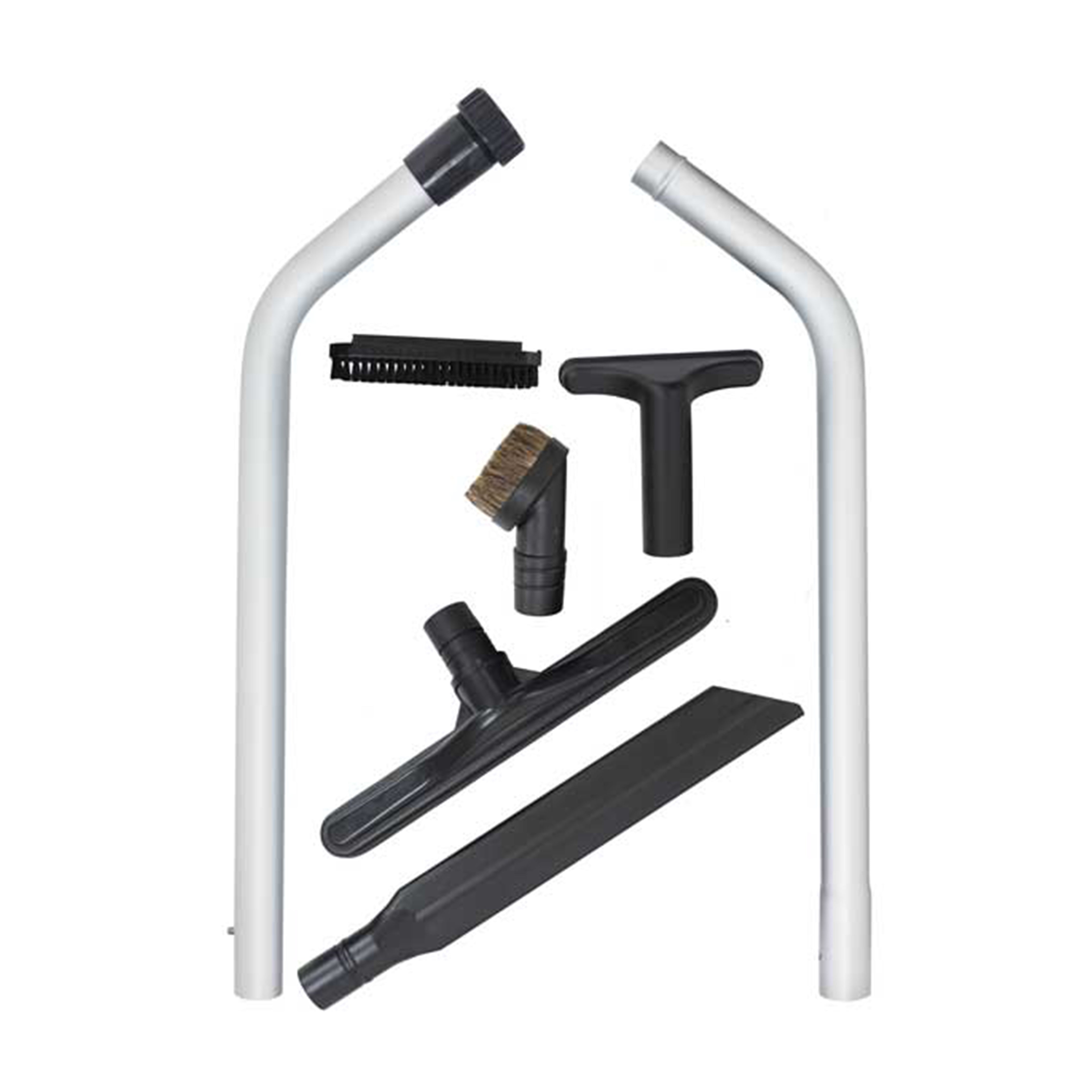

• Two-piece metal wand along with full 1½” accessory kit included
• 8′ hose includes full 1½” swivel connection system for easy handling and operation
• Easy water disposal with hose drain system

Specifications:

Model	Atlas 6 qt.
Capacity	6 qt.	10 qt.
Watts	1150	1150
Electrical Draw	10 amps	10 amps
CFM	130 CFM	130 CFM
Waterlift	110″	110″
Filtration	4 stage	4 stage
Decibels	65 db	65 db
Thermally Protected	Yes	Yes
Construction	Roto-molded Polyetheleyene	Roto-molded Polyetheleyene
Hose	4′ static dissipating hose with swivel cuffs	4′ static dissipating hose with swivel cuffs
Power Cord	50′ detachable	50′ detachable
Vacuum Bag	Ultrastat™ Vacuum Bag	Ultrastat™ Vacuum Bag
Cloth Bag	Included	Included
Dimensions	23.5″H x 8″L x 8″W	25″H x 9″L x 9″W
Weight	9.8 lbs.	10.8 lbs.
Shipping Weight with Tools	22 lbs.	23.5 lbs.
Shipping Dimensions	32″H x 13″L x 13″W	32″H x 13″L x 13″W
Warranty	5 year parts & labor, lifetime on housing	5 year parts & labor, lifetime on housing
Shipping Dimensions	39″H x 26″L x 22″W
Electrical Draw	13 amps
Warranty	2 year parts & labor

Dynamo Operations Manual – DOWNLOAD
