General Overview

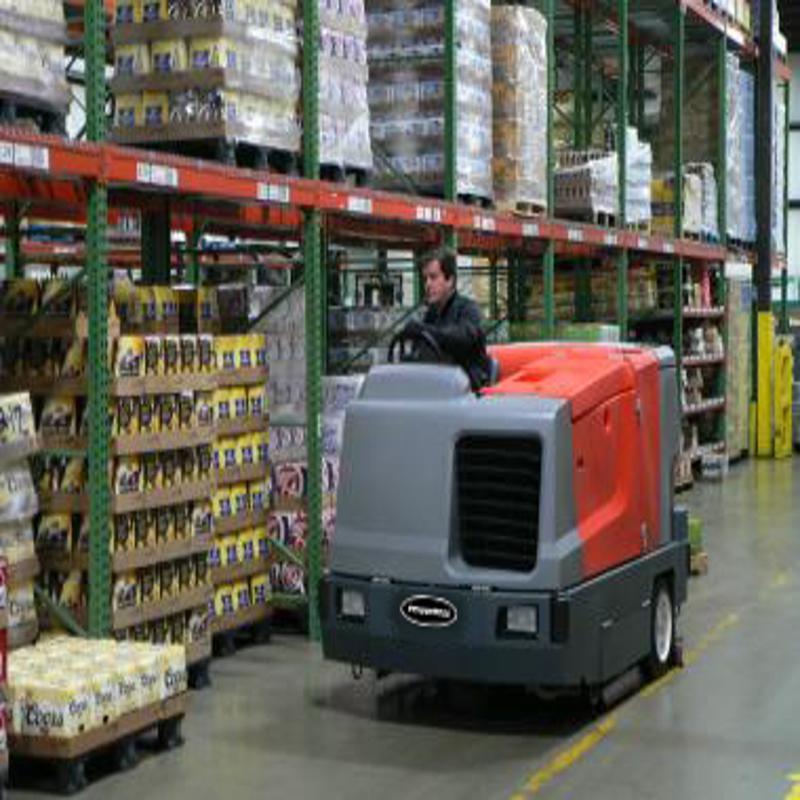

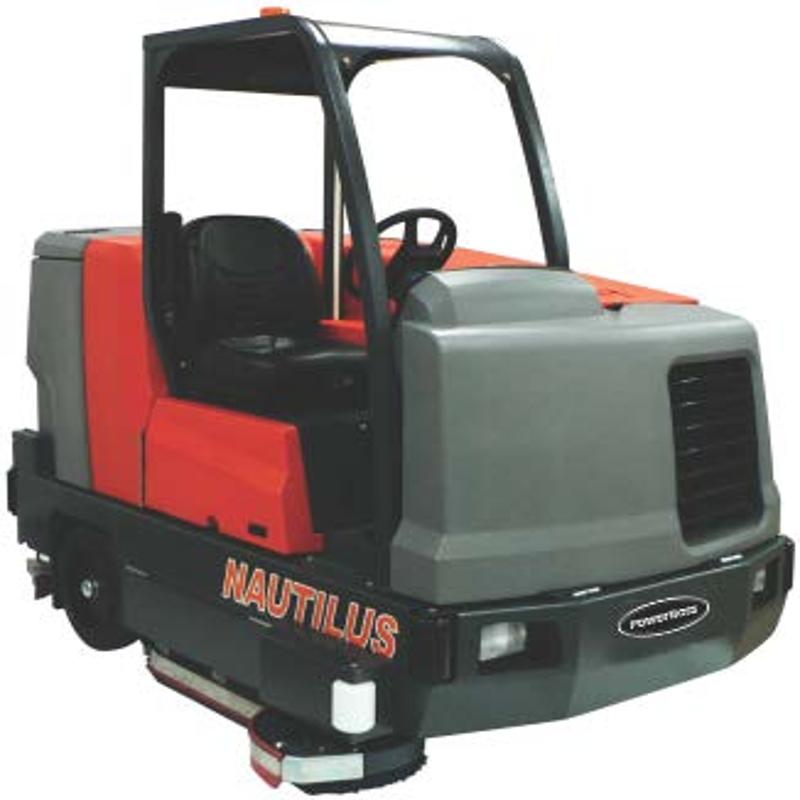

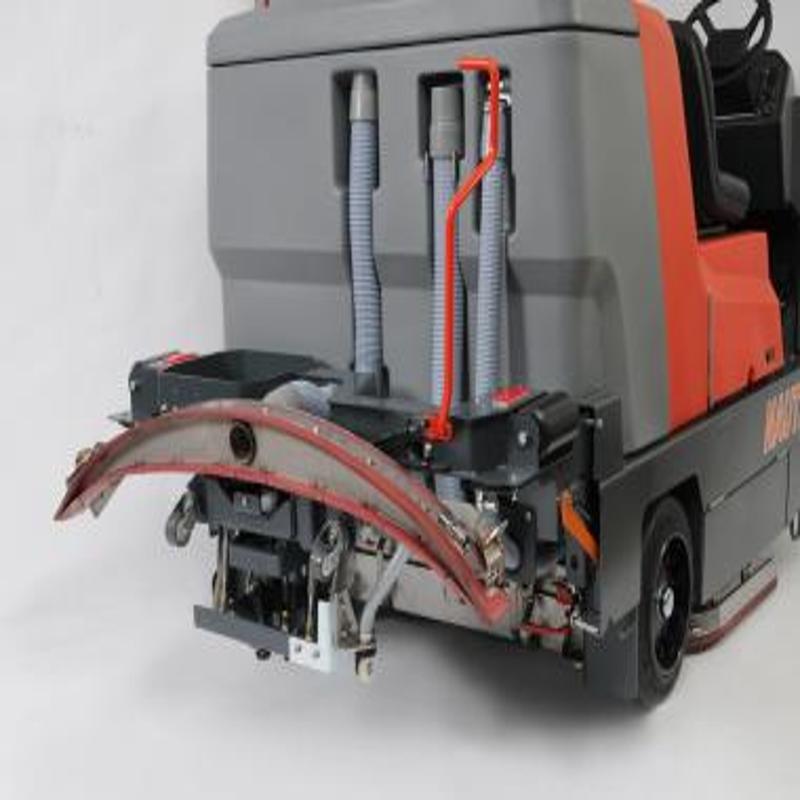

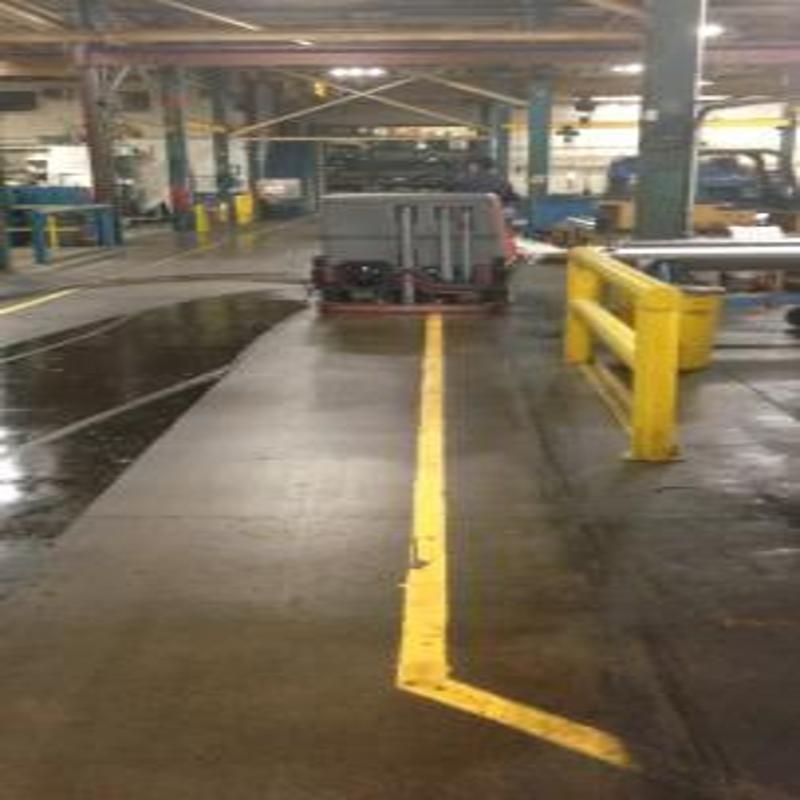

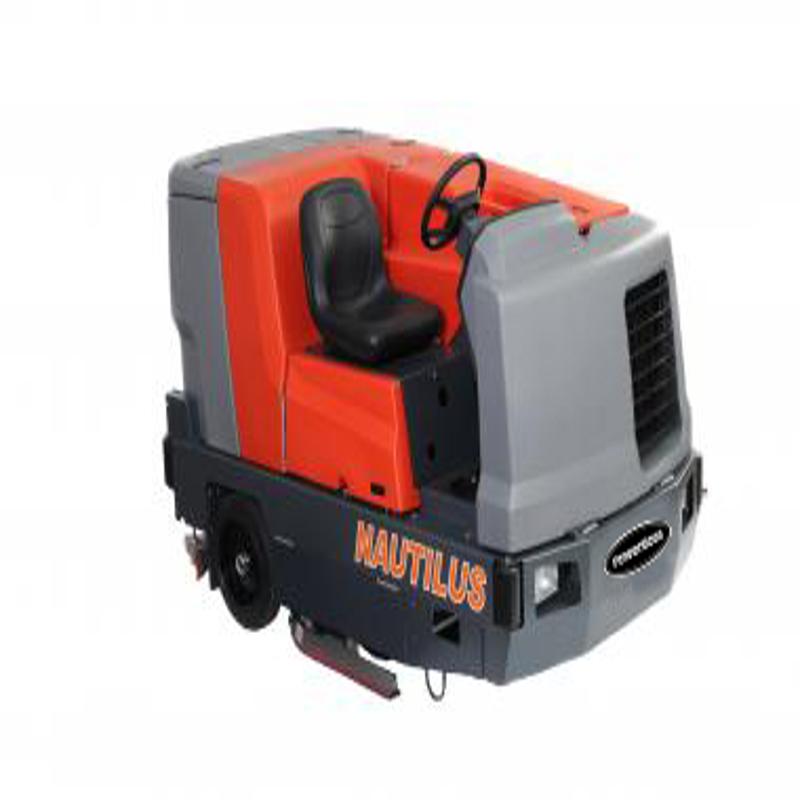

The Nautilus is a robust, agricultural all-steel constructed rider scrubber, known as the workhorse of the scrubbing industry. Its single set of cylindrical brushes allows it to sweep and scrub simultaneously. With the largest tank capacity in the industry at 105 gallons and a stainless steel scrubbing deck, the Nautilus is built for durability and high performance. Powered by a reliable Kubota engine, the Nautilus ensures long-term dependability. A standout feature is the optional TGT (Thermal Green Technology), an onboard self-generating hot water system that increases cleaning water temperatures by up to +70 degrees above ambient, enhancing cleaning efficiency.
Key Features:
- Main Scrubbing Path: 45”
- Side Scrub or Sweep Width: 60”/62”
- Tank Capacity: 105-gallon solution and recovery
- Engine Options: Kubota – Gasoline, LPG, or Diesel
- Onboard Hot Water Generation: TGT (Thermal Green Technology)
- Operation: 1-Touch scrubbing features
- Construction: Stainless steel scrubbing deck and debris hopper, agricultural-grade steel frame
- Scrubbing Down Pressure: Up to 400 lbs.
- Brush and Squeegee Changes: No tools required
- Warranty: Industry-leading machine and engine warranty
Ease of Use:
- Maintenance Access: 360-degree accessibility around the engine, radiator, hydraulic pump, vacuum motor, hydraulic tank, and electrical system after removing the engine panels without tools.
- Overhead Guard: Four-post overhead guard with safety light (optional).
- Recovery Tank Cleaning: Large drain hose for quick and clean draining, two large top doors, and an 8” access cap for easy sediment removal.
Specifications:
- Brush Diameter: 12”
- Brush Pressure: 200-400 lbs.
- Brush Speed: 425 rpm
- Front Wheels: 16” x 6” molded
- Height: 60.5”
- Length: 95”
- Rear Wheels: 18” x 5” press-on
- Recovery Capacity: 105 gallons
- Solution Capacity: 105 gallons
- Turning Radius: 107.7”
- Weight: 4,800 lbs. (3,250 lbs. without drive/batteries)
- Cleaning Width: 45” or 60” with side scrub brush
