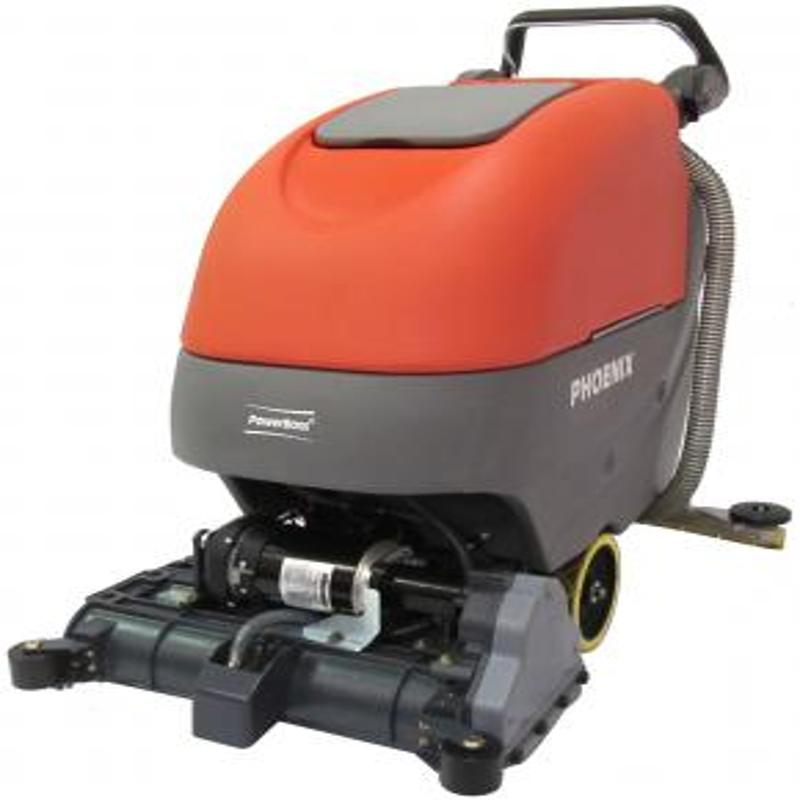

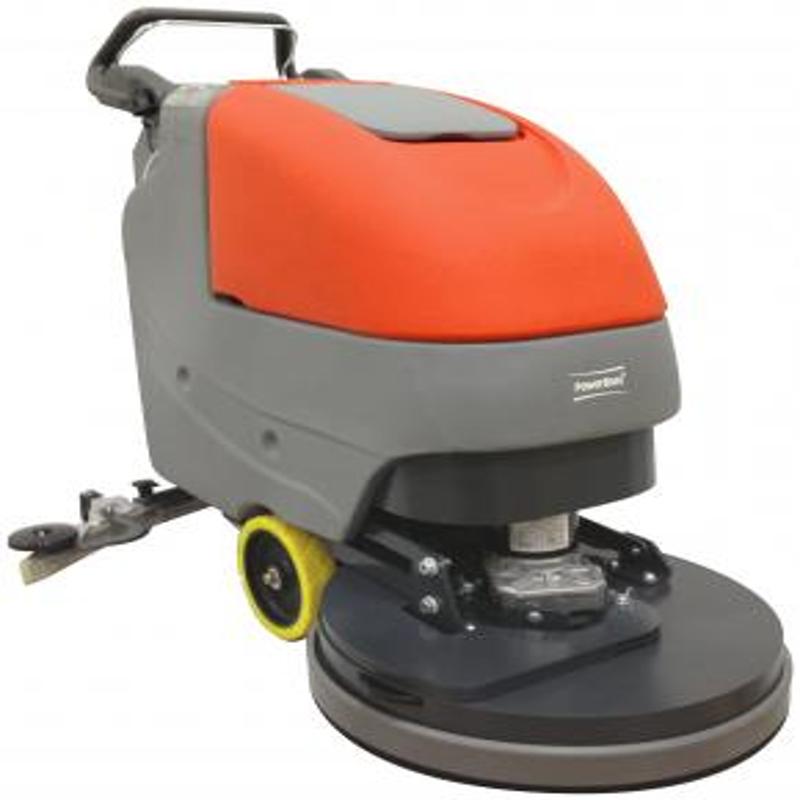

The Phoenix 20 is a compact brush scrubber available in disc or cylindrical models with a 20” cleaning path. It features traction drive, covering up to 20,000 sq. ft. per hour (1,858 m²). The ergonomic design ensures operator comfort with adjustable speed regulation, easy-to-understand controls, and excellent line of sight.
Key Features:
- Usable Hopper Capacity: Powerful dust filter and aggressive filter shaker.
- Self-Propelled Traction Drive: Reduces operator fatigue.
- Large Debris Flap: Handles larger objects effortlessly.
- Take-it-easy 2 Hopper System: Ergonomic emptying.
- Maintenance-Free Batteries: Standard onboard chargers.
- Unique Broom Designs: Close edge cleaning and full hopper utilization.
- Clean Side Filter Removal: No-mess maintenance, optional HEPA filter available.
- Optional Side Broom “Dust Stop”: Reduces dust and airborne particulates by up to 90%.
- Robust, Heavy-Duty Steel Frame: Ensures durability.
- Ergonomic Design: Self-propelled traction drive system with parking brake and automatic release.
Specifications:
- Brush Speed: 180 rpm
- Brush Type: Disc
- Drive Motor: (TD) 1/5 HP (150 W)
- Number of Brushes: 1
- Recovery Capacity: 13 Gal (49 liters)
- Solution Capacity: 12 Gal (45 liters)
- Squeegee Width: 33 in (84 cm)
- Theoretical Productivity (BD): 15,000 ft²/hr (1,394 m²)
- Theoretical Productivity (TD): 20,000 ft²/hr (1,858 m²)
- Vacuum Flow: 65 cfm (110 m³/hr)
- Vacuum Power: .60 HP (450 W)
- Vacuum Waterlift: 45 inches (112 mbar)
- Weight with Batteries (BD): 313 lbs (142 kg)
- Weight without Batteries (BD): 203 lbs (92 kg)
- Cleaning Width: 20 in (51 cm)
- Scrubbing Style: Disc or Cylindrical
- Brush Motor Power: .75 HP
- Brush RPM (Cylindrical): 600 RPM
- Brush RPM (Disc): 180 RPM
- Solution Capacity: 12 gallon
- Recovery Capacity: 13 gallon
- Scrub Brushes (Cylindrical): 20” (2)
- Scrub Brushes (Disc): 20” (1)
- Theoretical Productivity: 27,280 ft²/hr
Manuals and Parts sheets
