Tornado Surge 500 Extractor TE310-G15-U

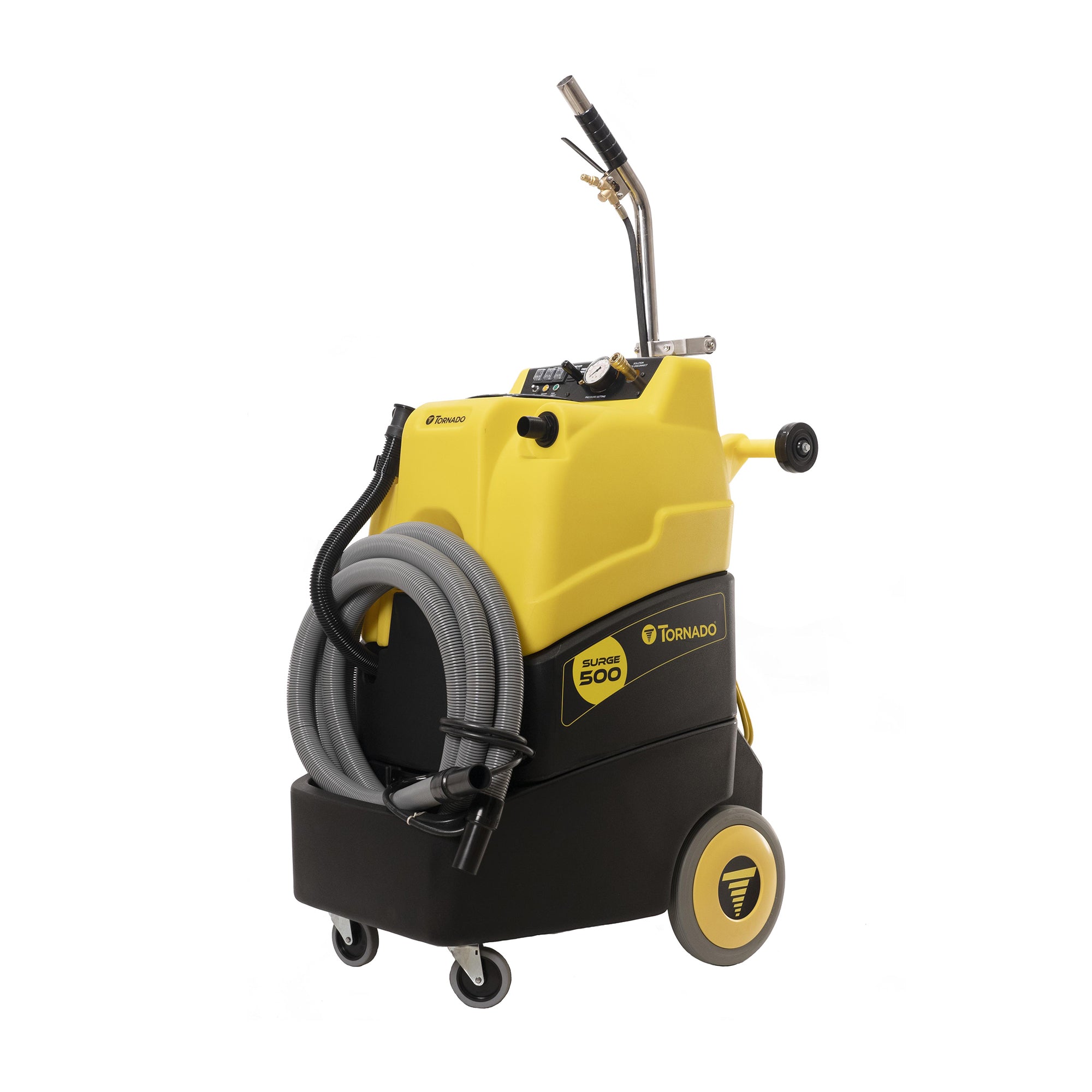

Tornado Surge 500 Carpet Extractor
The Tornado Surge 500 Carpet Extractor combines 15-gallon solution and recovery tanks with a 133 CFM vacuum, providing enhanced cleaning capacity and reduced drying times. It includes a powerful wand and an Airwatt motor specifically designed for wet pick-up, offering unmatched protection against moisture with sealed bearings and an electronic float shutoff. User-friendly features include on-board storage for the hose, wand, cords, and chemicals, as well as easy-to-access controls and efficient filling, draining, and maintenance capabilities.
Features:
- Built-in storage for the included wand, hose, power cords, and chemicals for easy transport and storage.

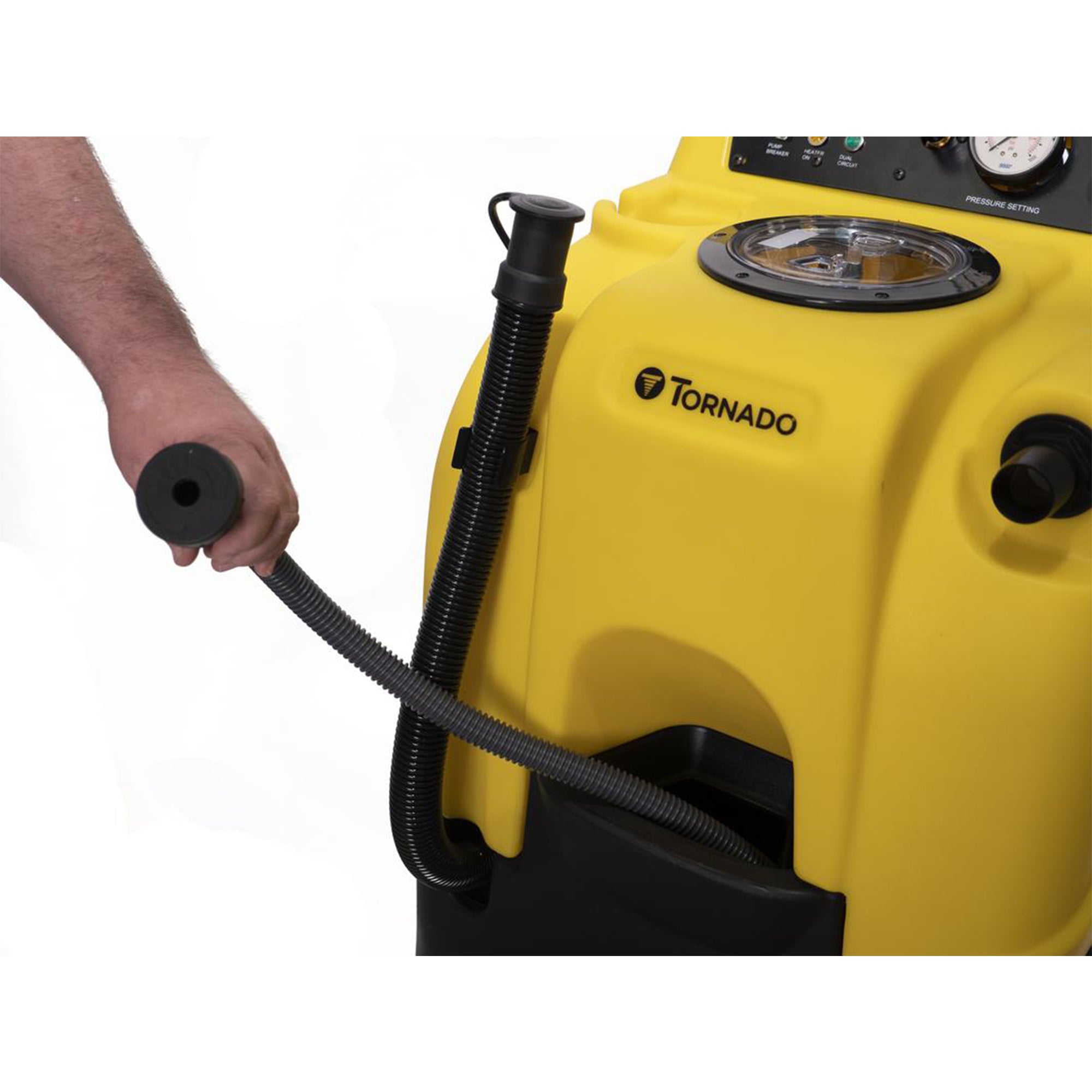

- Easy filling and emptying with a 10-foot sink fill hose, wide opening for bucket pours, and front-mounted drain hose.
- Intuitive controls conveniently located on top of the machine, reducing the need to reach or bend over during operation.

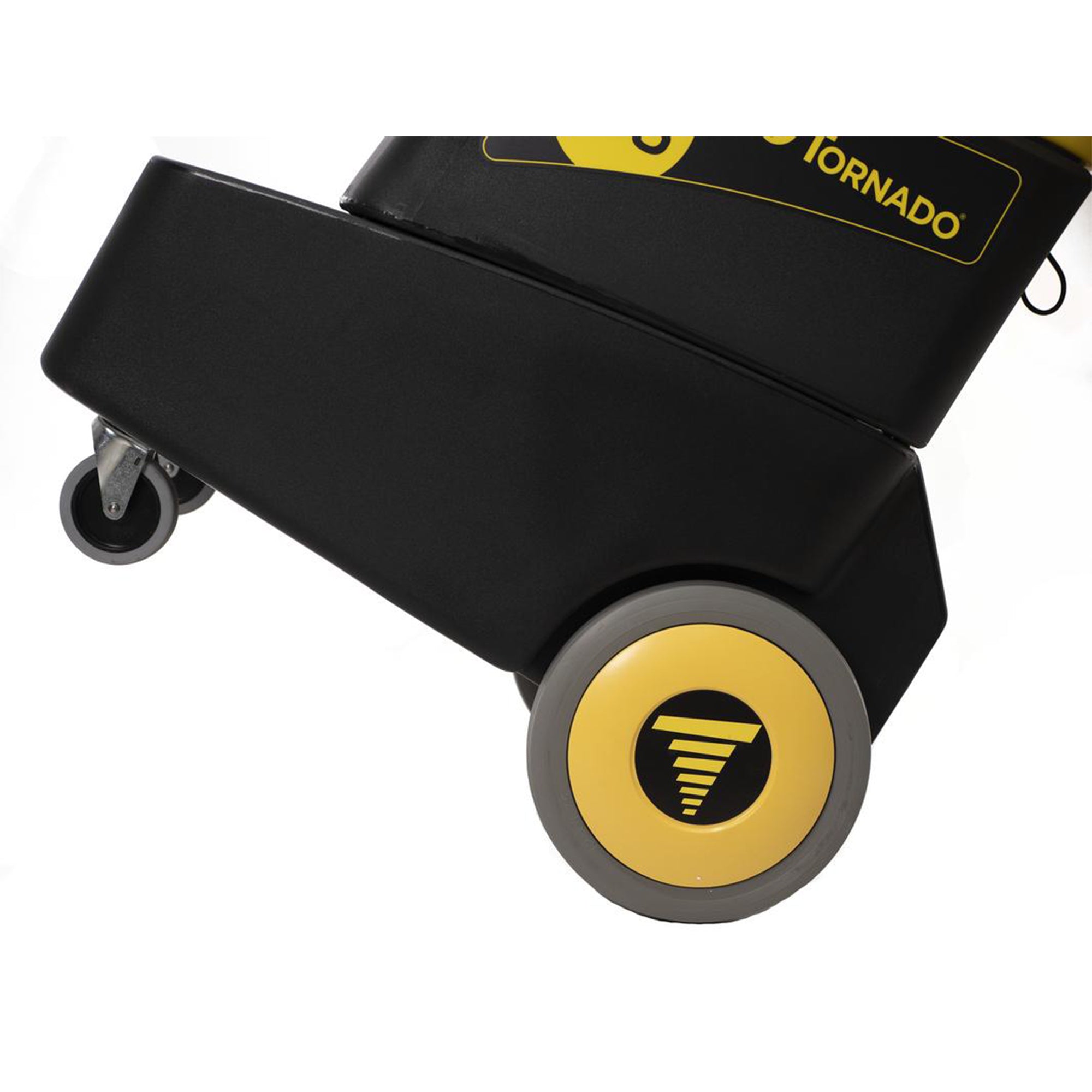

- Increased mobility with large 12” rear wheels, unique stair-assist design, and handle-mounted transport wheels.

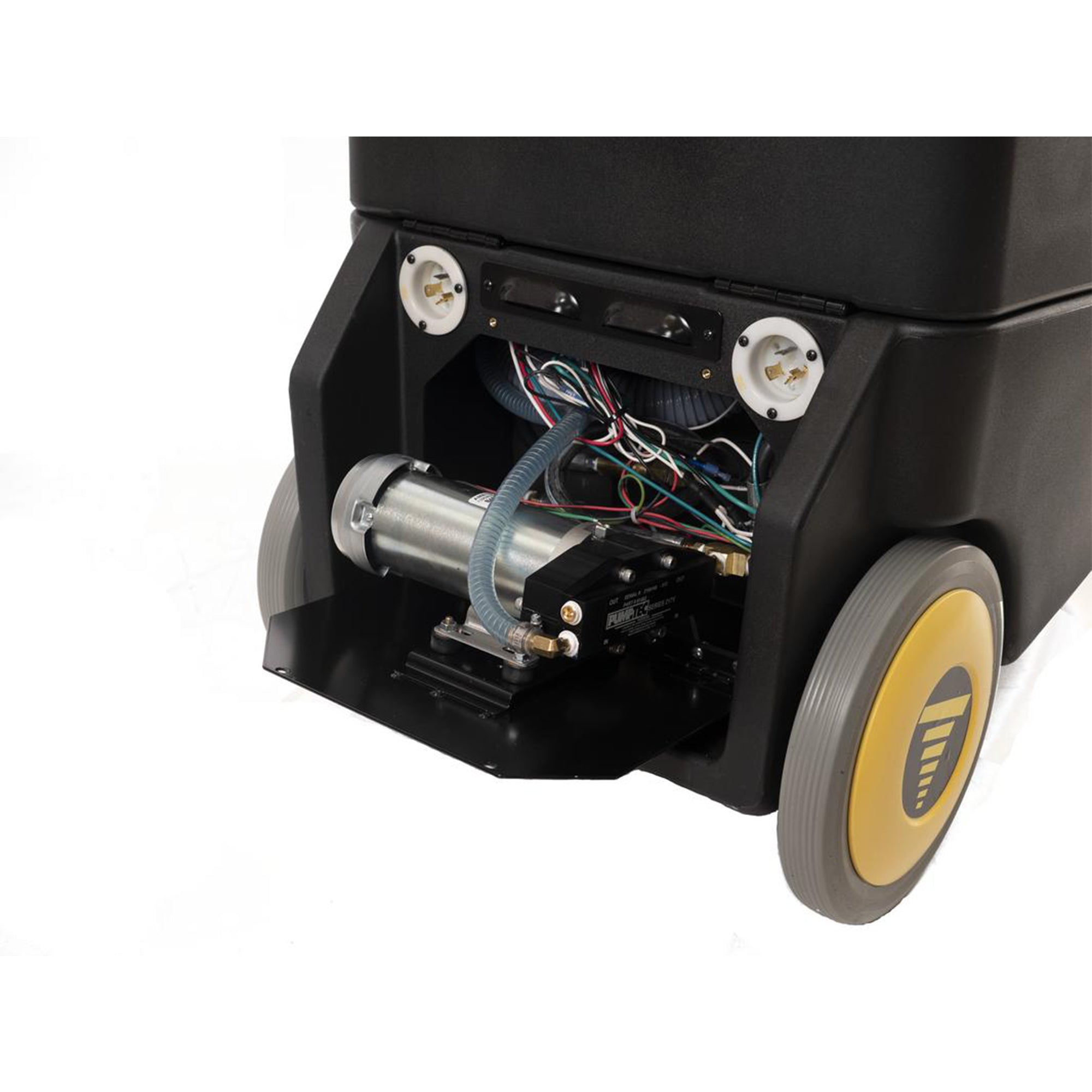

- Rear service panel and clamshell design provide easy access to the pump, vacuum, and heater, significantly reducing downtime for repairs and maintenance.
- Features an Airwatt motor, the industry’s only vacuum motor designed for wet pick-up, with sealed bearings to prevent premature failure from moisture.
Specifications:

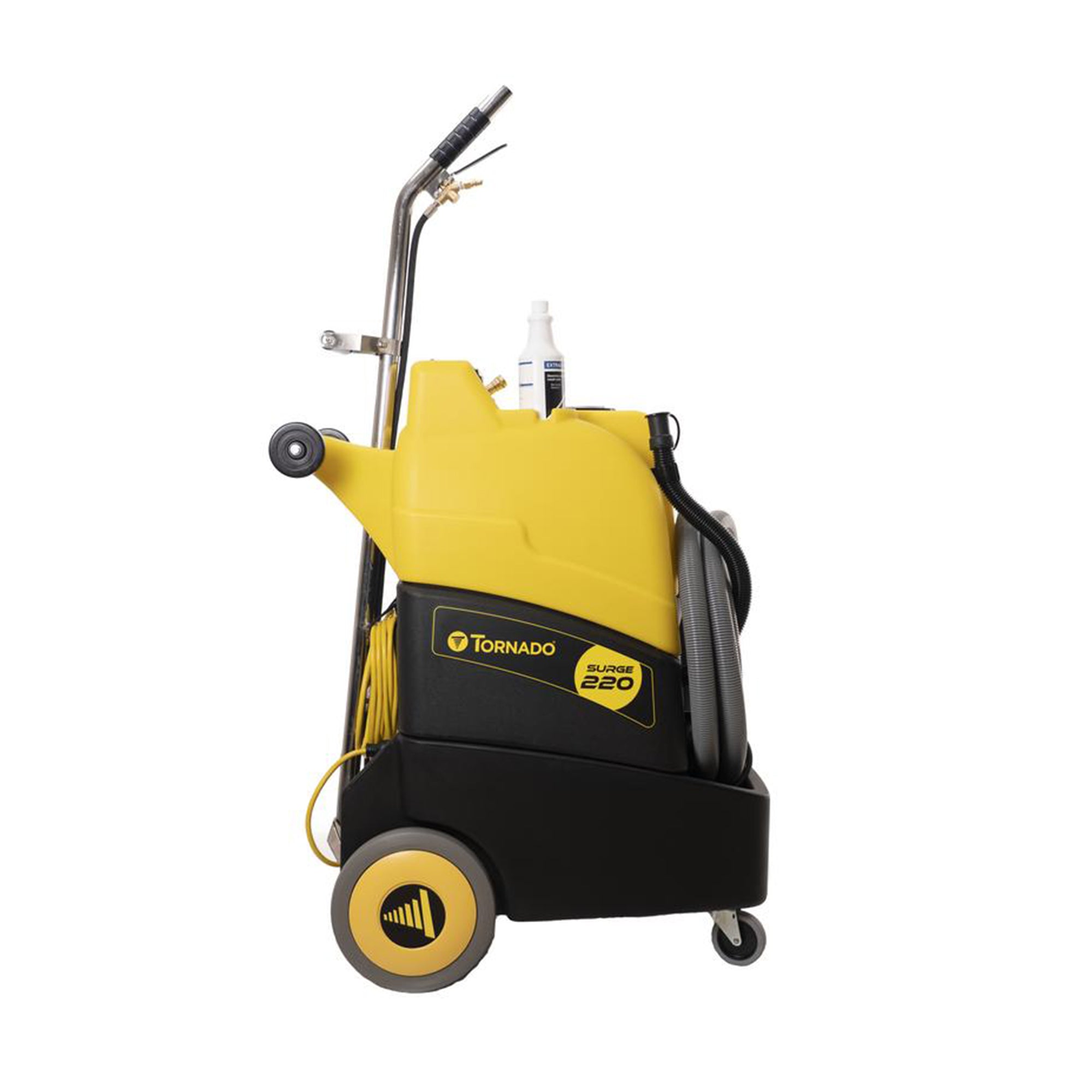

Name | Surge 220 | Surge 500 |
---|---|---|
Model # | TE200-G15-U | TE310-G15-U |
Solution & Recovery Tank Capacity (ea.) | 15 Gallons | 15 Gallons |
Vac Motor | Single Airwatt (625 Watts) | Single Airwatt (625 Watts) |
CFM | 133 | 133 |
Waterlift | 125" | 125" |
Solution Pump (PSI) | 220 | 50-500 |
Heater | Single Element | Single Element |
Max Heat | 190 | 190 |
Vacuum/Solution Hose | 20 Ft. Insider Hose | 20 Ft. Insider Hose |
Vacuum Hose Diameter | 1.5" | 1.5" |
Cord Configuration | Dual Circuit | Dual Circuit |
Amp Draw | 15 amps | 15 amps |
Front Wheels | 4" Casters | 4" Casters |
Rear Wheels | 12" | 12" |
Wand (included) | Up to 800 PSI | Up to 800 PSI |
Weight (lbs) | 152 | 152 |
Dimensions (LxWxH) | 36.5"x23.5"x45.5" | 36.5"x23.5"x45.5 |
